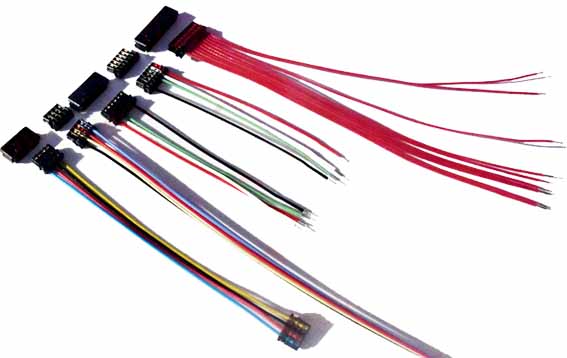

0600 series 0.60mm pitch terminal harness (.024")
The advantages of ultra-small, crimping through-hole connectors:
1. The crimped perforated wire harness is produced and processed by fully automatic equipment, which can ensure stable quality even in mass production.
2. Realize wire-to-board W-B connection in a very small space.
3. CJST's professional piercing crimping technology can ensure stable quality even when using extremely thin wires. (The smallest crimpable wire AWG#36)
4. The shortest wire harness length can be crimped 30mm, and the longest wire harness length is 300mm.

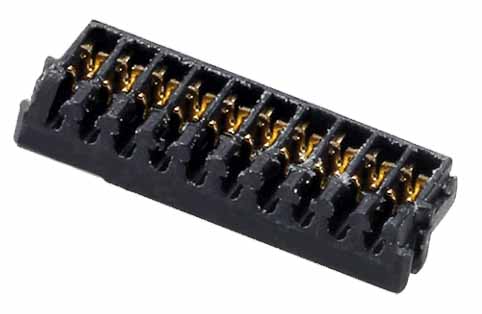

Plastic shell-0.60mm pitch, pierced connector
product category	0600 series	Rows	1
Product spacing	0.60mm	Number of poles	2-22
product material	LCP,UL94V-0	Rated current	0.2A AC/DC
Product color	black	Rated voltage	30V AC/DC
Insulation resistance	100MΩMin	Contact resistance	30mΩMax
Metal Material	brass	Withstand voltage	200V AC/minute
plating	Gilded	temperature range	-25℃ - +85℃
Wire diameter OD	0.32mm(Max)	Pierced connector
Product Image

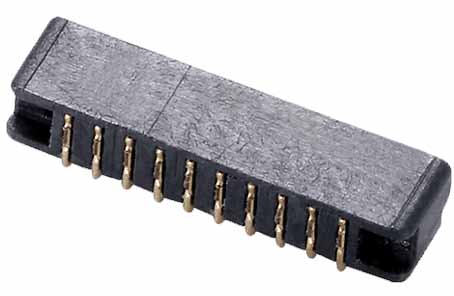

Needle seat-0.60mm pitch, 90°, SMT needle seat 0600WRS-XX
product category	0600 series	Rows	1
Product spacing	0.60mm	Number of poles	2-22
product material	LCP,UL94V-0	Rated current	0.2A AC/DC
Product color	black	Rated voltage	30V AC/DC
Insulation resistance	100MΩMin	Contact resistance	30mΩMax
Metal Material	brass	Withstand voltage	200V AC/minute
plating	Gilded	temperature range	-25℃ - +85℃
Wire diameter OD	0.32mm(Max)	Pierced connector
Product Image

0.60mm (.024") pitch terminal wiring harness is widely used in: New energy vehicles, instrument panels, shift levers, inkjet printers, laser printers, set-top boxes, LED TVs, smart TVs, laptops, smart drones, industrial electrical, electrical test equipment, household appliances, medical care, hearing aids, patient monitoring instrument.
